Oil Coolers

MODEL:
Y-3/4HP-04
Capacity: 3,5 kW

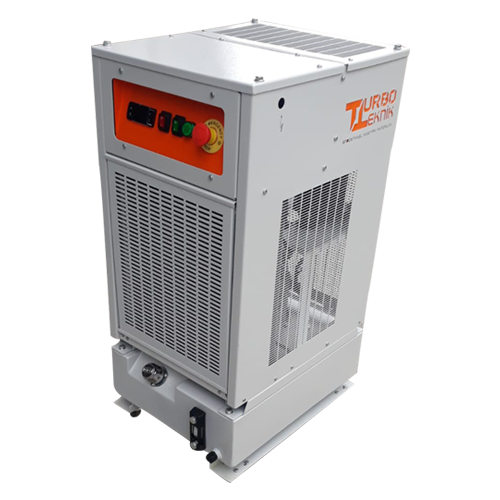

Oil chillers are used to cool spindle&gearbox mechanisms of CNC lathes and to cool bor oils.

Applications
System Limits
Gauges & Lights
Cabinet
Options

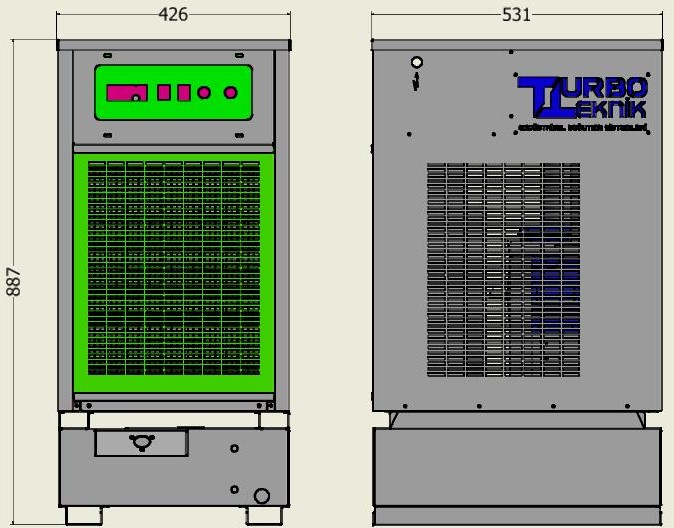

Dimensions

Applications

  • Cooling of transmission oil and spindle oils of CNC machines
  • Cooling of boron oil needed by CNC machines

Oil Circuit

  • Low oil level protection

Refrigerant Circuit

  • Low pressure protection
  • High pressure protection

Electric Circuit

  • Pump over current motor protection
  • Pump motor phase protection

Oil Circuit

  • Emco digital alarm oil temperature indicator
  • Low oil level warning light
  • Oil gauge glass

Cabinet

  • Galvanized sheet (1.5mm)
  • Electrostatic powder coated
  • Top and side panels can be opened
  • Compact dimensions
  • It is designed for indoor work.

Options

  • Oil level sensor
  • Oil flow sensor
  • Cabin Wheels
Cooling Capacity kW 3,5
Kcal/h 3,2
Compressor Type Rotary
Power Hp 1
Refrigeration Gas R407C
Refrigerant Flow Control Capillary
Evaporator Type Co-axial
Fan Quantity 1
Diameter cm 30
Power Watt
Flow Rate m3/h 1370
Pump Type Gear
Power Hp 1/2
Flow Rate lt/dk 7,5
Head ss 5
Material GG25 Casting
Oil tank Volume Liter 30
Material Black tin plate
Oil tank Inch 1/2
Electrical Materials Siemens veya Schneider Electric
Electricity Supply V / Hz 380/50-60Hz
Working Current A 7,8
Power Cable mm2 5 x 1,5
Supply Power kW 1.2
Weight kg
The cooling capacity given in the table is calculated at +7,2C evaporation and +40,0C evaporation temperature.
