Industrial Water Chiller
Capacity: 150 kW
Our industrial water chiller series products are widely used in
plastic, metal, pharmaceutical, textile, automative and chemistry
industries.
Applications
System Limits
Gauges & Lights
Cabinet
Options

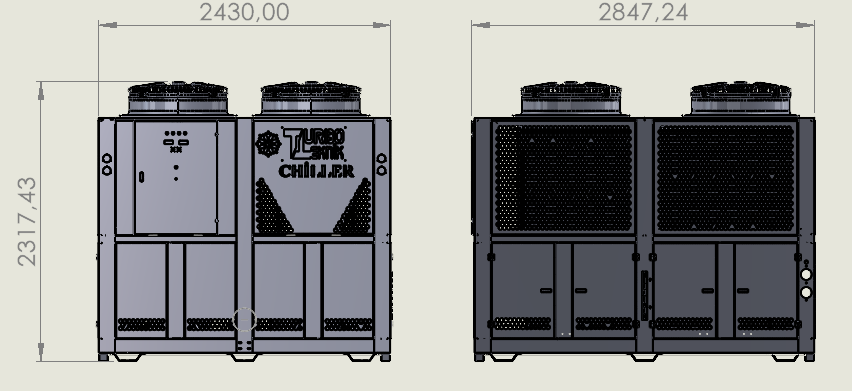

Dimensions
Applications
- Cooling of molds in injection molding machines
- Cooling water for laser sheet cutting machines
- Cooling water for induction furnaces
-
Cooling of jaws and transformers in spot welding machines
- Cooling of torches in gas shielded welding robots
- Cooling of hydraulic press oil
- Cooling of seam welding machines
-
Maintaining acid bath temperature between 20–30 °C in
coating processes such as galvanizing and anodizing
-
Cooling of servo motor shafts in router machines in the
furniture industry
Water Circuit
- Low water pressure protection
Refrigerant Gas Circuit
- Low pressure protection
- High pressure protection
Electrical Circuit
- Pump overcurrent motor protection
- Pump motor phase protection
- Compressor overcurrent motor protection
- Compressor motor phase protection
Water Circuit
- Dixell digital water temperature display
- Water pressure gauge
Refrigerant Gas Circuit
- Low pressure warning lamp
- High pressure warning lamp
Electrical Circuit
- Compressor thermal fault indicator lamp
- Pump thermal fault indicator lamp
Cabinet Features
- Galvanized sheet metal (1.5 mm)
- Electrostatic powder coated
- Top and side panels are openable
- Compact dimensions
- Designed for indoor operation
Options
- Plate heat exchanger
- Water level sensor
- Water flow sensor
- Cabinet wheels
|
Cooling Capacity
|
kW |
150 |
| Kcal/h |
258,000 |
|
Compressor
|
Type |
SEMI-HERMETIC COMPRESSOR |
| Power |
Hp |
2x30HP |
|
Refrigerant
|
R407C |
|
Refrigerant Control
|
Expansion Valve |
|
Evaporator Type
|
Shell and Tube (Dual Circuit) |
|
Fan
|
Quantity |
2 |
| Diameter |
cm |
4x80 |
| Power |
Watt |
1060 |
| Air Flow |
m3/h |
15,600 |
|
Pump
|
Type |
Centrifugal |
| Power |
Hp |
7.5 |
| Flow Rate |
m3/h |
28 |
| Pressure |
mss |
40 |
| Material |
GG25 Cast Iron |
|
Water Tank
|
Volume |
Liter |
500 |
| Material |
Plastic |
|
Water Connection
|
Inch |
2 |
|
Electrical Components
|
Siemens or Schneider Electric |
|
Power Supply
|
V / Hz |
380 / 50-60Hz |
|
Operating Current
|
A |
21.3 |
|
Power Cable
|
n x mm2
|
5 x 6 |
|
Power Consumption
|
kW |
10.8 |
|
Weight
|
kg |
|
|
• The specified cooling capacity is based on +7.2°C
evaporation temperature and +40.0°C condensation
temperature.
|
