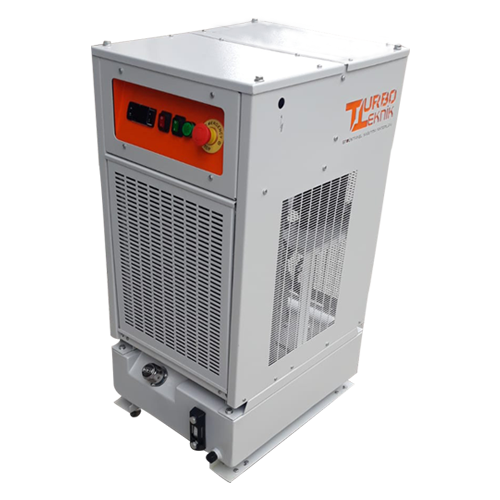

Oil chillers are used to cool spindle&gearbox mechanisms of CNC lathes and to cool bor oils.
| Cooling Capacity | kW | 2,7 | |||||
| Kcal/h | 2,32 | ||||||
| Compressor | Type | Rotary | |||||
| Power | Hp | 3/4 | |||||
| Refrigeration Gas | R407C | ||||||
| Refrigerant Flow Control | Capillary | ||||||
| Evaporator Type | Co-axial | ||||||
| Fan | Quantity | 1 | |||||
| Diameter | cm | 30 | |||||
| Power | Watt | ||||||
| Flow Rate | m3/h | 1370 | |||||
| Pump | Type | Gear | |||||
| Power | Hp | 1/2 | |||||
| Flow Rate | lt/dk | 7,5 | |||||
| Head | ss | 5 | |||||
| Material | GG25 Casting | ||||||
| Oil tank | Volume | Liter | 30 | ||||
| Material | Black tin plate | ||||||
| Oil tank | Inch | 1/2 | |||||
| Electrical Materials | Siemens veya Schneider Electric | ||||||
| Electricity Supply | V / Hz | 380/50-60Hz | |||||
| Working Current | A | 6 | |||||
| Power Cable | mm2 | 5 x 1,5 | |||||
| Supply Power | kW | 1.2 | |||||
| Weight | kg | ||||||
| The cooling capacity given in the table is calculated at +7,2C evaporation and +40,0C evaporation temperature. | |||||||
