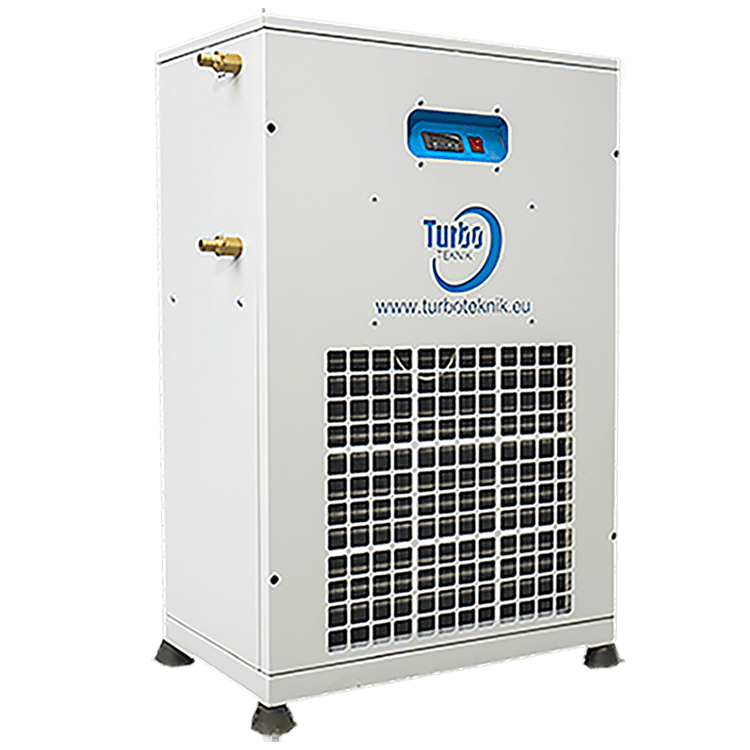

Industrial Water Chiller
Capacity: 4.8 kW
Our industrial water chiller series products are widely used in
plastic, metal, pharmaceutical, textile, automative and chemistry
industries.
Applications
System Limits
Gauges & Lights
Cabinet
Options

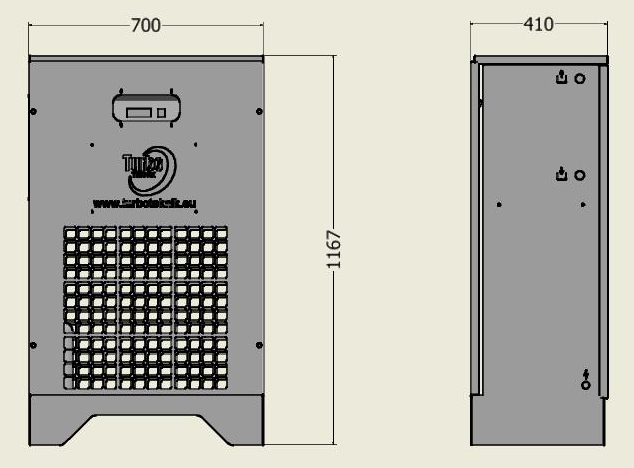

Dimensions
Applications
- Cooling the mold of the injection press
- Cooling the water of laser sheet cutting machines
- Cooling the water of induction cookers
-
Cooling of the jaws and transformers of spot welding
machines
- Cooling of torches of arc welding robots
- Oil cooling of hydraulic presses
- Cooling of seam welding machines
-
Keeping acid bath temperature constant between 20-30 C in
coating processes such as galvanization and anodizing
-
Cooling of the servo motor shaft of router benches in the
furniture industry
Water Circuit
- Low water level protection
- Frost protection
Refrigerant Circuit
- Low pressure protection
- High pressure protection
Electric Circuit
- Compressor over current motor protection
Water Circuit
- Dixell digital water temperature gauge
Cabinet
- Galvanized sheet (1.5mm)
- Electrostatic powder coated
- Top and side panels can be opened
- Compact dimensions
- It is designed for indoor work.
|
Cooling Capacity
|
kW |
4,8 |
| Kcal/h |
4,1 |
|
Compressor
|
Type |
Hermetic reciprocating |
| Power |
Hp |
1,5 |
|
Refrigeration Gas
|
R404A |
|
Refrigerant Flow Control
|
Expansion Valve |
|
Evaporator Type
|
Plate Type |
|
Cooling Fan
|
Quantity |
1 |
| Diameter |
cm |
40 |
| Power |
Watt |
180 |
| Flow Rate |
m3/h |
3.830 |
|
Pump
|
Type |
|
| Power |
Hp |
|
| Flow Rate |
m3/h |
|
| Head |
mss |
|
| Material |
|
|
Tank
|
Volume |
Liter |
|
| Material |
|
|
Fluid Connection
|
Inch |
1/2 |
|
Electrical Apparatus
|
Siemens veya Schneider Electric |
|
Electrical Supply
|
V / Hz |
380V /50-60Hz |
|
Working Current
|
A |
4,84 |
|
Power Cable
|
n x mm2
|
5 x 1,5 |
|
Supply Power
|
kW |
2,3 |
|
Weight
|
kg |
|
|
The cooling capacity given in the table is calculated
at +7,2C evaporation and +40,0C evaporation
temperature.
|
