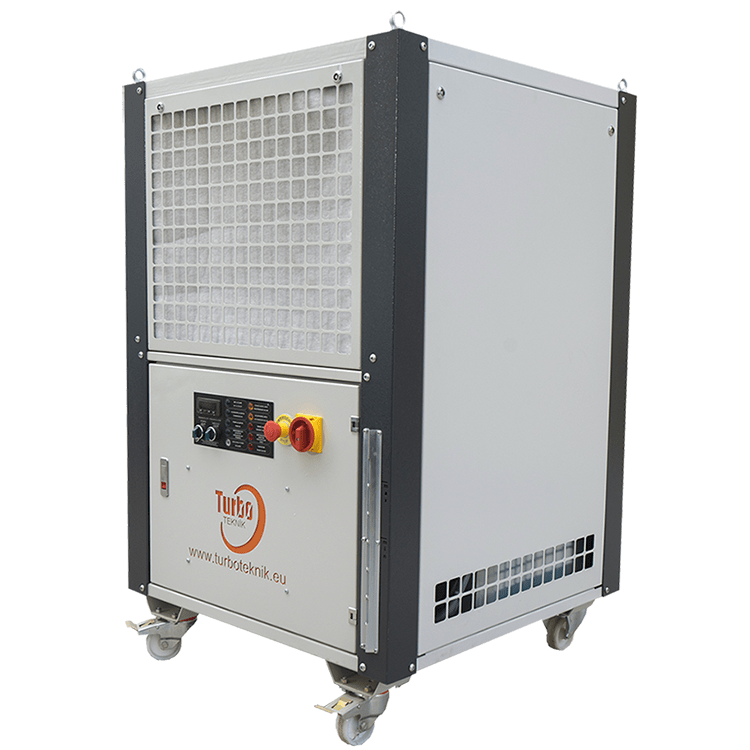

Industrial Water Chiller
Capacity: 6.5 kW
Our industrial water chiller series products are widely used in plastic, metal, pharmaceutical, textile,
automative and chemistry industries.
Applications
System Limits
Gauges & Lights
Cabinet
Options

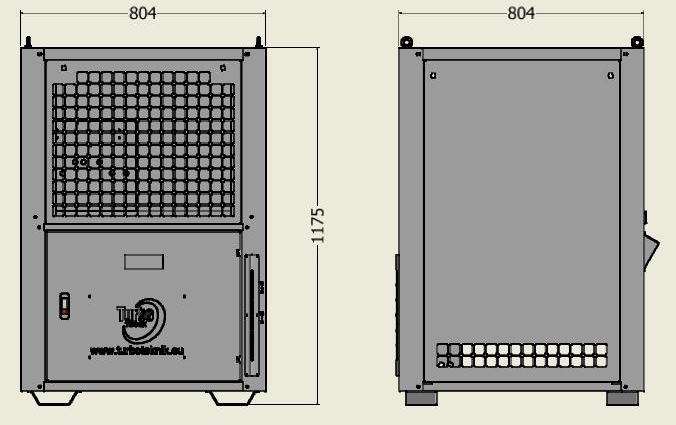

Dimensions
Applications
- Cooling the mold of the injection press
- Cooling the water of laser sheet cutting machines
- Cooling the water of induction cookers
- Cooling of the jaws and transformers of spot welding machines
- Cooling of torches of arc welding robots
- Oil cooling of hydraulic presses
- Cooling of seam welding machines
- Keeping acid bath temperature constant between 20-30 C in coating processes such as galvanization
and anodizing
- Cooling of the servo motor shaft of router benches in the furniture industry
Water Circuit
- Low water pressure protection
- Low water level protection
- Frost protection
Refrigerant Circuit
- Low pressure protection
- High pressure protection
Electric Circuit
- Pump over current motor protection
- Pump motor phase protection
- Compressor over current motor protection
- Compressor motor phase protection
Water Circuit
- Dixell digital water temperature gauge
- No coolant flow warning light
- Freezing warning warning light
Refrigerant Circuit
- Low pressure warning light
- High pressure warning light
Electric Circuit
- Compressor thermal fault lamp
- Pump thermal fault lamp
Cabinet
- Galvanized sheet (1.5mm)
- Electrostatic powder coated
- Top and side panels can be opened
- Compact dimensions
- It is designed for indoor work.
Options
- Plate heat exchanger
- Stainless water tank (304 SS)
- Cabin Wheels
| Cooling Capacity |
kW |
6,5 |
| Kcal/h |
5,6 |
| Compressor |
Type |
Hermetic reciprocating |
| Power |
Hp |
2 |
| Refrigeration Gas |
R404A |
| Refrigerant Flow Control |
Expansion Valve |
| Evaporator Type |
Shell and tube |
| Cooling Fan |
Quantity |
1 |
| Diameter |
cm |
45 |
| Power |
Watt |
160 |
| Flow Rate |
m3/h |
4.500 |
| Pump |
Type |
Centrifugal |
| Power |
Hp |
1 |
| Flow Rate |
m3/h |
2 |
| Head |
mss |
29 |
| Material |
GG25 Cast iron |
| Tank |
Volume |
Liter |
90 |
| Material |
Siyah sac |
| Fluid Connection |
Inch |
1 |
| Electrical Apparatus |
Siemens veya Schneider Electric |
| Electrical Supply |
V / Hz |
380 /50-60Hz |
| Working Current |
A |
7,3 |
| Power Cable |
n x mm2 |
5 x 1,5 |
| Supply Power |
kW |
3,25 |
| Weight |
kg |
|
| The specified Cooling Capacity value is based on + 5C evaporation temperature and
+ 40C condensation temperature. |
