Industrial Water Chiller
Capacity: 10.2 kW
Our industrial water chiller series products are widely used in
plastic, metal, pharmaceutical, textile, automative and chemistry
industries.
Applications
System Limits
Gauges & Lights
Cabinet
Options

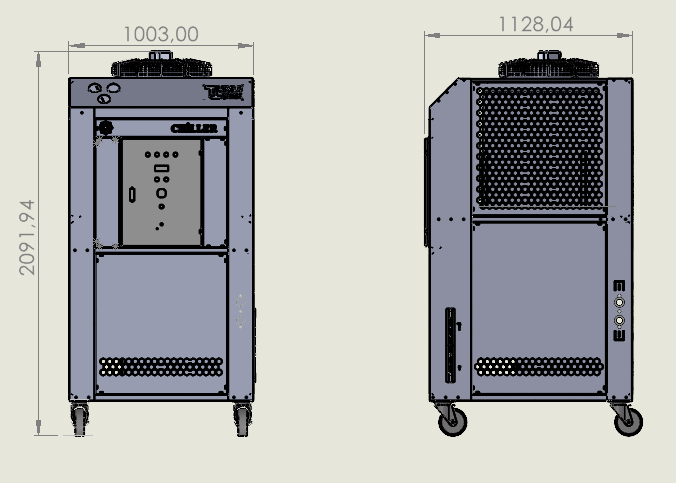

Dimensions
Applications
- Cooling of molds in injection molding machines
- Cooling water for laser sheet cutting machines
- Cooling water for induction furnaces
-
Cooling of jaws and transformers in spot welding machines
- Cooling of torches in gas shielded welding robots
- Cooling of hydraulic press oil
- Cooling of seam welding machines
-
Maintaining acid bath temperature between 20–30 °C in
coating processes such as galvanizing and anodizing
-
Cooling of servo motor shafts in router machines in the
furniture industry
Water Circuit
- Low water pressure protection
Refrigerant Gas Circuit
- Low pressure protection
- High pressure protection
Electrical Circuit
- Pump overcurrent motor protection
- Pump motor phase protection
- Compressor overcurrent motor protection
- Compressor motor phase protection
Water Circuit
- Dixell digital water temperature display
- Water pressure gauge
Refrigerant Gas Circuit
- Low pressure warning lamp
- High pressure warning lamp
Electrical Circuit
- Compressor thermal fault indicator lamp
- Pump thermal fault indicator lamp
Cabinet Features
- Galvanized sheet metal (1.5 mm)
- Electrostatic powder coated
- Top and side panels are openable
- Compact dimensions
- Designed for indoor operation
Options
- Plate heat exchanger
- Water level sensor
- Water flow sensor
- Cabinet wheels
|
Cooling Capacity
|
kW |
10.3 |
| Kcal/h |
8.8 |
|
Compressor
|
Type |
Hermetic Piston |
| Power |
Hp |
3 |
|
Refrigerant
|
R404A |
|
Refrigerant Flow Control
|
Expansion Valve |
|
Evaporator Type
|
Immersion type coil |
|
Fan
|
Quantity |
1 |
| Diameter |
cm |
50 |
| Power |
Watt |
520 |
| Airflow |
m3/h |
8,760 |
|
Pump
|
Type |
Centrifugal |
| Power |
Hp |
1 |
| Flow Rate |
m3/h |
2 |
| Pressure |
mss |
29 |
| Material |
Casting |
|
Oil Tank
|
Capacity |
Liter |
300 |
| Material |
Stainless Steel |
|
Water Connection
|
Inch |
1 |
|
Electrical Components
|
Siemens or Schneider Electric |
|
Power Supply
|
V / Hz |
380 /50-60Hz |
|
Operating Current
|
A |
12 |
|
Power Cable
|
n x mm2
|
5 x 2.5 |
|
Input Power
|
kW |
5.32 |
|
Weight
|
kg |
|
|
• The specified cooling capacity value is given based
on +5°C evaporation temperature and +40°C condensation
temperature.
|
