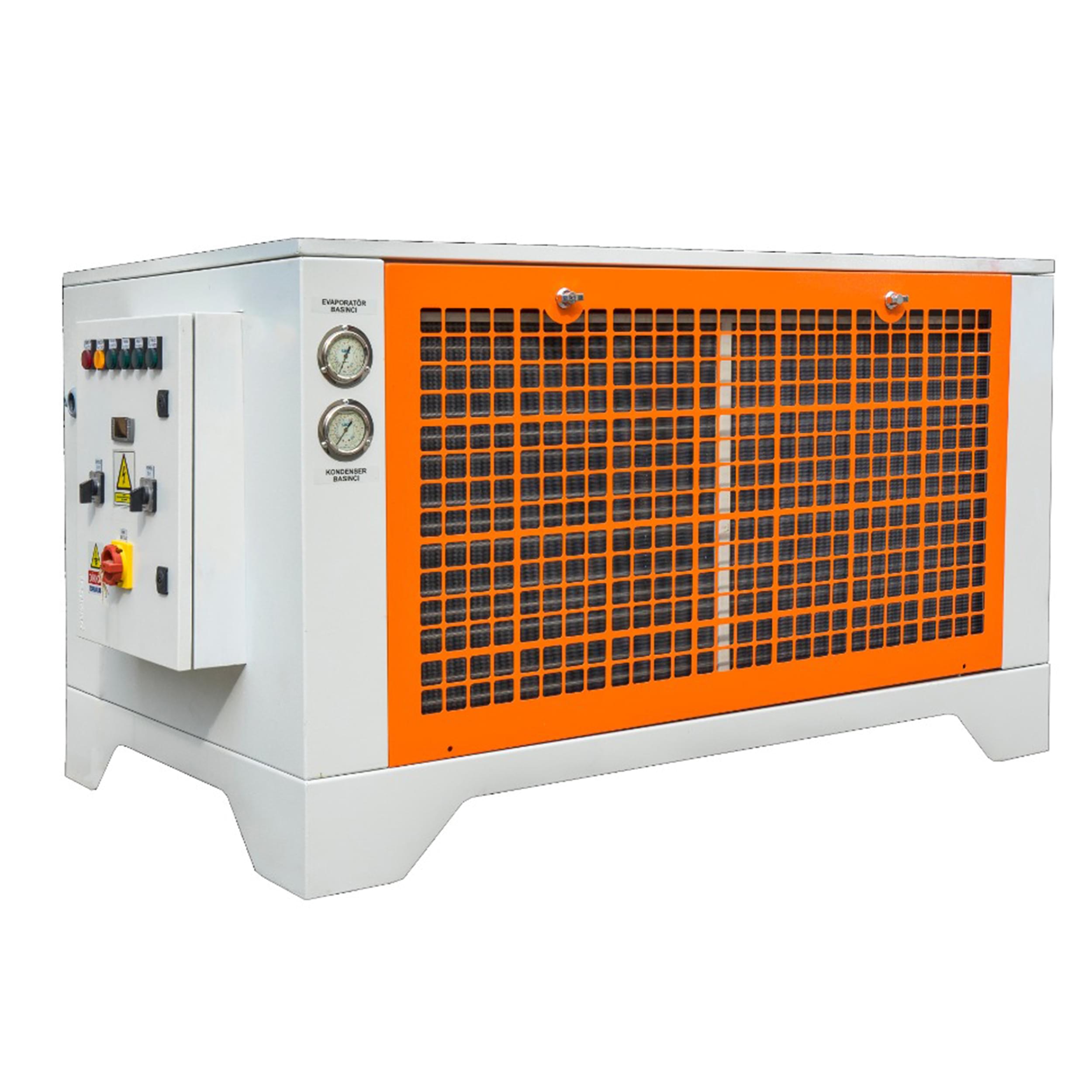

EDM Machine Chillers
MODEL:
T-3.5HP-01
T-5HP-01
T-7HP-01
Capacity: 10 - 19 kW
EDM machine chillers are used to remove excess heat from the water reservoir of EDM machines.
Applications
System Limits
Gauges & Lights
Cabinet
Options

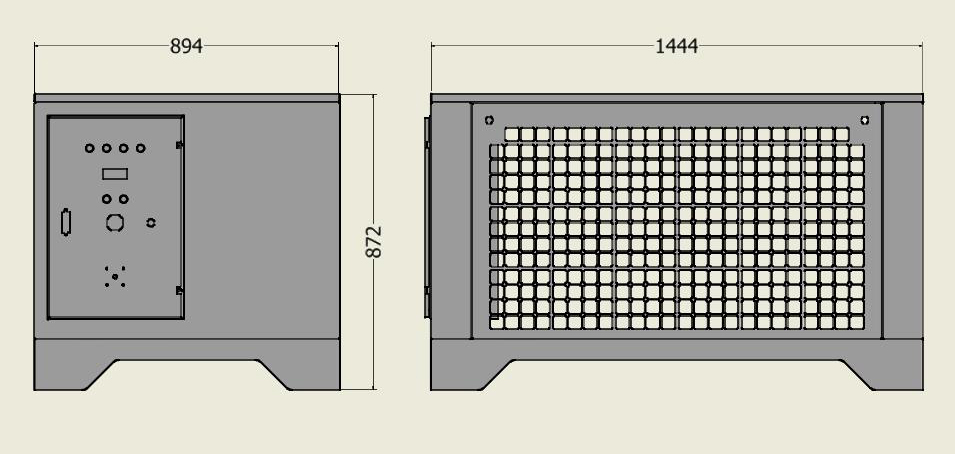

Dimensions
Applications
- CNC wire erosion machines for cooling
- In the cooling process of pool water
Elektrik
- Pump over current motor protection
- Pump over current motor protection
- Compressor over current motor protection
- Compressor motor phase protection
Refrigerant Circuit
- Low pressure protection
- High pressure protection
Water Circuit
- Low water level protection
- Frost protection
Elektrik
- Compressor thermal fault lamp
- Pump thermal fault lamp
Refrigerant Circuit
- Low pressure manometer
- High pressure manometer
- Low pressure fault lamp
- High pressure fault lamp
Water Circuit
- Dixell digital water temperature gauge
- Water pressure manometer
Cabinet
- Galvanized sheet (1.5mm)
- Electrostatic powder coated
- Top and side panels can be opened
- Compact dimensions
- It is designed for indoor work.
T-3.5HP-01
T-5HP-01
T-7HP-01
| Cooling Capacity |
kW |
9,6 |
| Kcal/h |
8,3 |
| Compressor |
Type |
Scroll |
| Power |
Hp |
3,5 |
| Refrigeration Gas |
R407C |
| Refrigerant Flow Control |
Expansion Valve |
| Evaporator Type
|
Plate Heat Exchanger |
| Cooling Fan
|
Quantity |
2 |
| Diameter |
cm |
45 |
| Power |
Watt |
160 |
| Flow Rate |
m3/h |
4.500 |
| Pump
|
Type |
Centrifugal |
| Power |
Hp |
1 |
| Flow Rate |
m3/h |
1,5 |
| Head |
mss |
30 |
| Material |
GG25 Cast iron |
| Tank |
Volume |
Liter |
|
| Material |
|
| Fluid Connection |
Inch |
1 |
| Electrical Apparatus |
Siemens veya Schneider Electric |
| Electrical Supply
|
V / Hz |
380 /50-60Hz |
| Working Current |
A |
10,1 |
| Power Cable
|
n x mm2 |
5 x 2,5 |
| Supply Power |
Watt |
4,25 |
| Weight |
kg |
|
| The cooling capacity given in the table is calculated at +7,2C evaporation and
+40,0C evaporation temperature. |
| Cooling Capacity |
kW |
14,5 |
| Kcal/h |
12,5 |
| Compressor |
Type |
Scroll |
| Power |
Hp |
5 |
| Refrigeration Gas |
R407C |
| Refrigerant Flow Control |
Expansion Valve |
| Evaporator Type
|
Plakalı |
| Cooling Fan
|
Quantity |
2 |
| Diameter |
cm |
50 |
| Power |
Watt |
520 |
| Flow Rate |
m3/h |
8.760 |
| Pump
|
Type |
Centrifugal |
| Power |
Hp |
1,5 |
| Flow Rate |
m3/h |
2 |
| Head |
ss |
30 |
| Material |
GG25 Cast iron |
| Tank |
Volume |
Liter |
|
| Material |
|
| Fluid Connection |
Inch |
1 |
| Electrical Apparatus |
Siemens veya Schneider Electric |
| Electrical Supply
|
V / Hz |
380 /50-60Hz |
| Working Current |
A |
15 |
| Power Cable
|
n x mm2 |
5 x 2,5 |
| Supply Power |
kW |
7,1 |
| Weight |
kg |
|
| Belirtilen Cooling Capacity değeri, +7,2C evaporasyon sıcaklığı ve +40,0C
kondensasyon
sıcaklığı baz alınarak verilmiştir. |
| Cooling Capacity |
Watt |
19,5 |
| Kcal/h |
16,7 |
| Compressor |
Type |
Scroll |
| Power |
Hp |
7 |
| Refrigeration Gas |
R407C |
| Refrigerant Flow Control |
Expansion Valve |
| Evaporator Type
|
Plate Heat Exchanger |
| Cooling Fan
|
Quantity |
2 |
| Diameter |
cm |
50 |
| Power |
Watt |
520 |
| Flow Rate |
m3/h |
8.760 |
| Pump
|
Type |
|
| Power |
Hp |
1,5 |
| Flow Rate |
m³/h |
2 |
| Head |
mss |
30 |
| Material |
GG25 Cast iron |
| Tank |
Volume |
Liter |
|
| Material |
|
| Fluid Connection |
Inch |
1,5 |
| Electrical Apparatus |
Siemens veya Schneider Electric |
| Electrical Supply
|
V / Hz |
380 /50-60Hz |
| Working Current |
A |
19,2 |
| Power Cable
|
n x mm2 |
5 x 4 |
| Supply Power |
kW |
8,4 |
| Weight |
kg |
|
| Belirtilen Cooling Capacity değeri, +7,2C evaporasyon sıcaklığı ve +40,0C
kondensasyon
sıcaklığı baz alınarak verilmiştir. |
