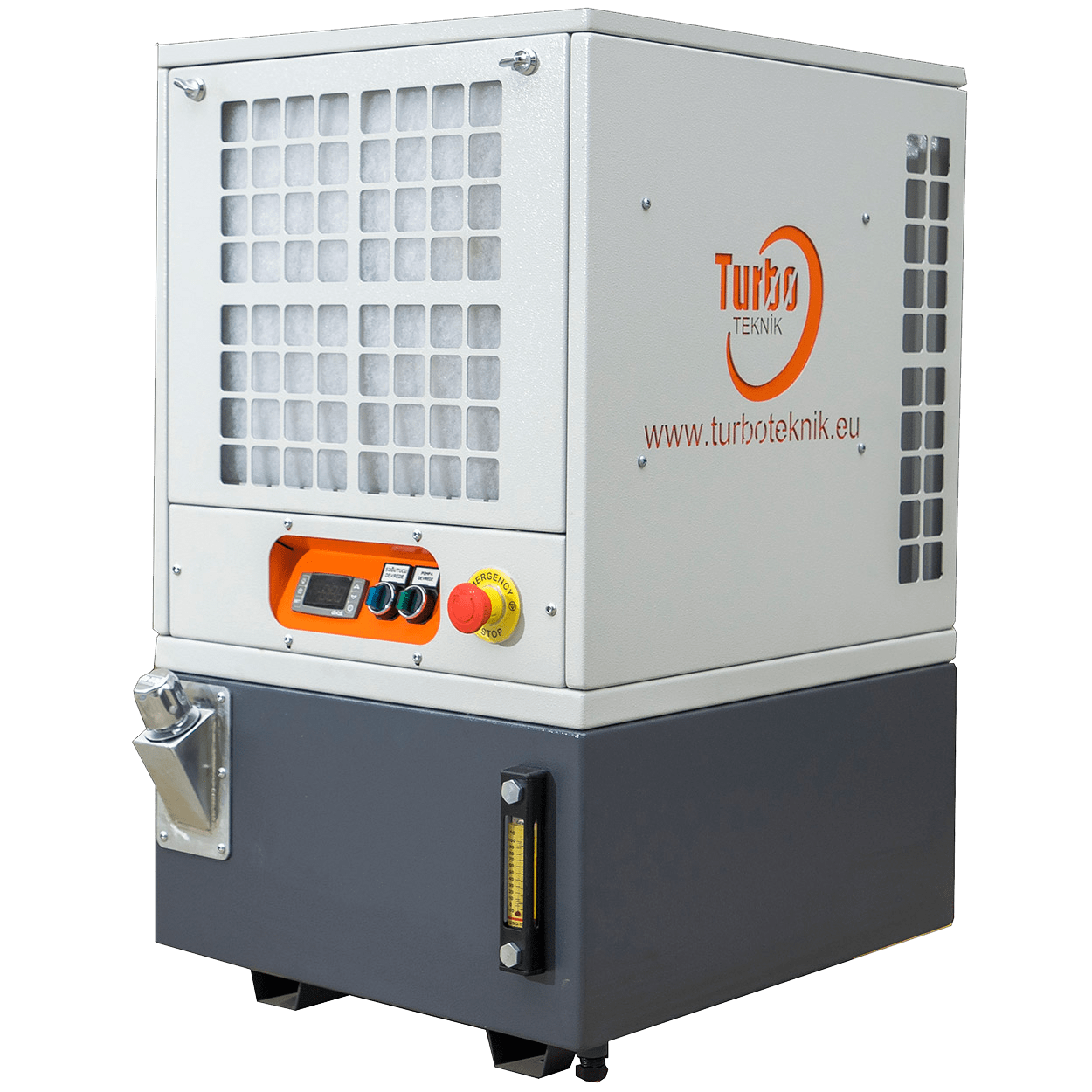

Oil chillers are used to cool spindle&gearbox mechanisms of CNC lathes and to cool bor oils.
| Cooling Capacity | kW | 1,45 | |||||
| Kcal/h | 1.25 | ||||||
| Compressor | Type | Hermetic reciprocating | |||||
| Power | Hp | 1/2 | |||||
| Refrigeration Gas | R134A | ||||||
| Refrigerant Flow Control | Capillary | ||||||
| Evaporator Type | Shell and tube | ||||||
| Cooling Fan | Quantity | 1 | |||||
| Diameter | cm | 30 | |||||
| Power | Watt | ||||||
| Flow Rate | m3/h | 1.230 | |||||
| Pump | Type | Dişli | |||||
| Power | Hp | 1/2 | |||||
| Flow Rate | lt/dk | 7,5 | |||||
| Head | ss | 5 | |||||
| Material | Cast iron | ||||||
| Yağ Tankı | Volume | Liter | 60 | ||||
| Material | Siyah sac | ||||||
| Yağ Bağlantısı | Inch | 1/2 | |||||
| Electrical Apparatus | Siemens veya Schneider Electric | ||||||
| Electrical Supply | V / Hz | 380/50-60Hz | |||||
| Working Current | A | 7 | |||||
| Power Cable | n x mm2 | 5 x 1,5 | |||||
| Supply Power | kW | 1,2 | |||||
| Weight | kg | ||||||
| The cooling capacity given in the table is calculated at +7,2C evaporation and +40,0C evaporation temperature. | |||||||
