Oil Coolers

MODEL:
Y-2HP-01
Capacity: 6.5 kW

Oil chillers are used to cool spindle&gearbox mechanisms of CNC lathes and to cool bor oils.

Applications
System Limits
Gauges & Lights
Cabinet
Options
Dimensions

Applications

  • Cooling of transmission oil and spindle oils of CNC machines
  • Cooling of boron oil needed by CNC machines

Oil Circuit

  • Low oil level protection
  • Low oil pressure protection
  • Frost protection

Refrigerant Circuit

  • Low pressure protection
  • High pressure protection

Electric Circuit

  • Pump over current motor protection
  • Pump motor phase protection
  • Compressor over current motor protection
  • Compressor motor phase protection

Oil Circuit

  • Dixell digital oil temperature gauge
  • No coolant flow warning light
  • Freezing warning warning light

Refrigerant Circuit

  • Low pressure warning light
  • High pressure warning light

Electric Circuit

  • Compressor thermal fault lamp
  • Pump thermal fault lamp

Cabinet

  • Stainless oil tank (304 SS)
  • Electrostatic powder coated
  • Top and side panels can be opened
  • Compact dimensions
  • It is designed for indoor work.

Options

  • Hermetic Reciprocating Compressor
  • Oil level sensor
  • Oil flow sensor
  • Cabin Wheels

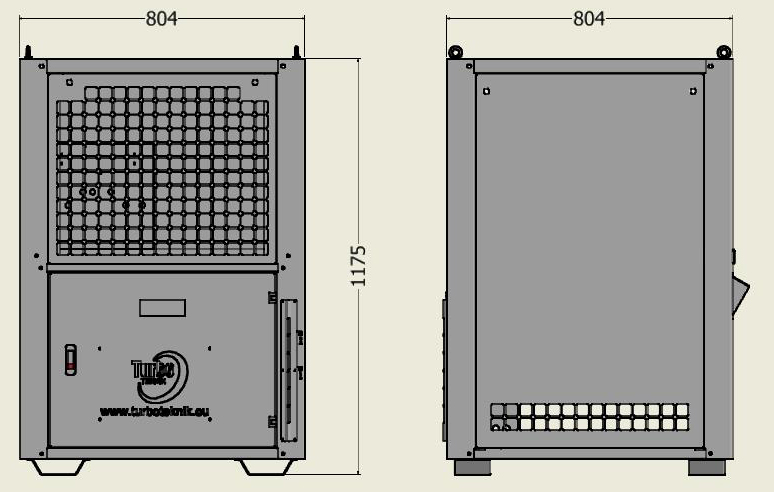

Product size
Cooling Capacity kW 6,5
Kcal/h 5,6
Compressor Type Hermetic reciprocating
Power Hp 2
Refrigeration Gas R404A
Refrigerant Flow Control Expansion Valve
Evaporator Type Shell and tube
Cooling Fan Quantity 1
Diameter cm 45
Power Watt 160
Flow Rate m3/h 4.500
Pump Type Centrifugal
Power Hp 1
Flow Rate lt/dk 16
Head ss 22
Material Cast iron
Yağ Tankı Volume Liter 90
Material Siyah sac
Yağ Bağlantısı Inch 1
Electrical Apparatus Siemens veya Schneider Electric
Electrical Supply V / Hz 380 /50-60Hz
Working Current A 7
Power Cable n x mm2 5 x 2,5
Supply Power kW 3,3
Weight kg
The specified Cooling Capacity value is based on + 5C evaporation temperature and + 40C condensation temperature.

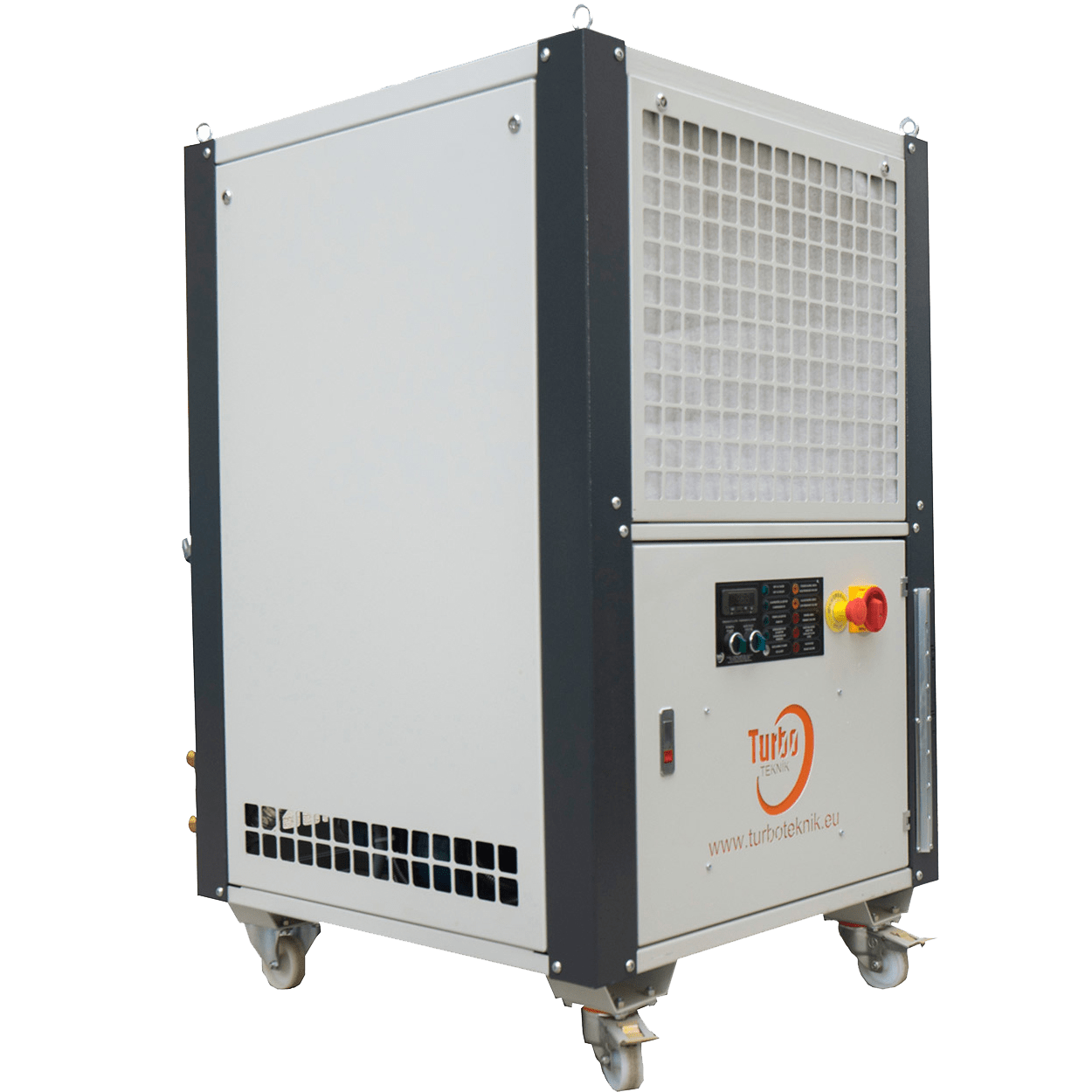

Product image
