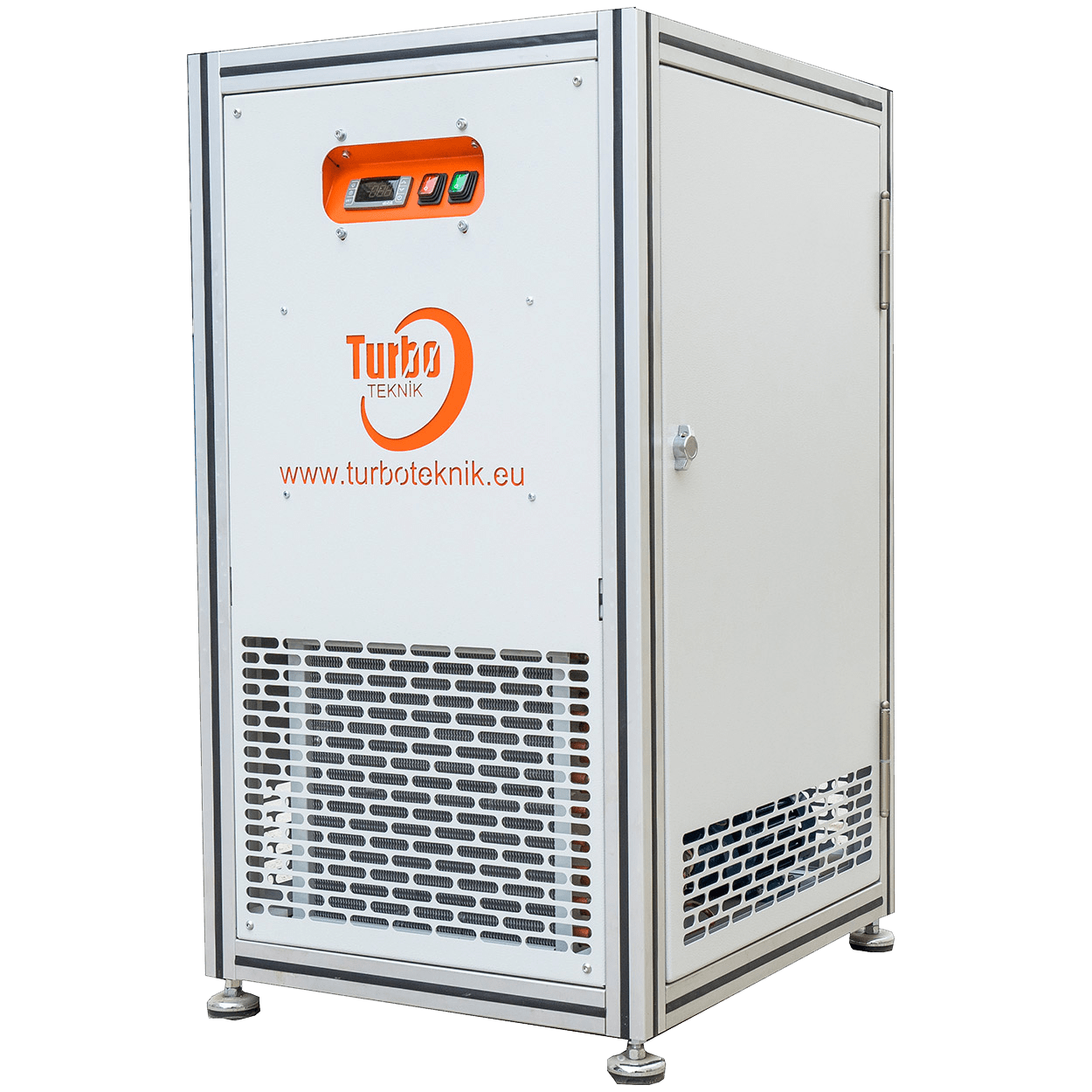

Oil Coolers

MODEL:
Y-3/4HP-01
Capacity: 1.85 kW

Oil chillers are used to cool spindle&gearbox mechanisms of CNC lathes and to cool bor oils.

Applications
System Limits
Gauges & Lights
Cabinet
Options

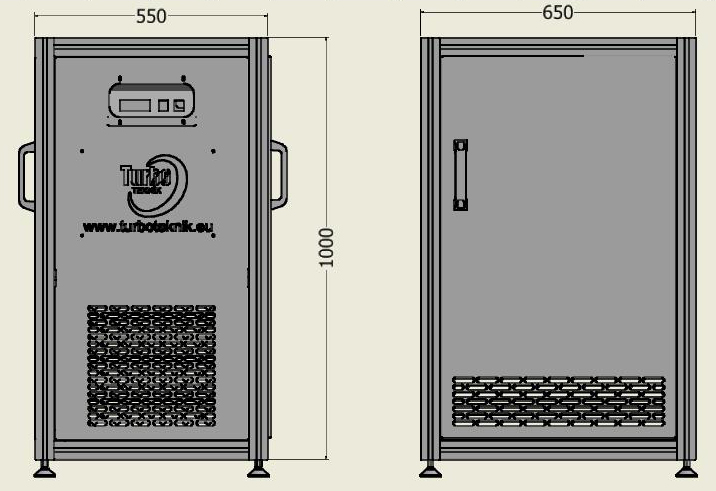

Dimensions

Applications

  • Cooling of transmission oil and spindle oils of CNC machines
  • Cooling of boron oil needed by CNC machines

Oil Circuit

  • Low oil level protection

Refrigerant Circuit

  • Low pressure protection
  • High pressure protection

Electric Circuit

  • Pump over current motor protection
  • Pump motor phase protection

Oil Circuit

  • Emco digital alarm oil temperature indicator
  • Low oil level warning light

Cabinet

  • Galvanized sheet (1.85mm)
  • Electrostatic powder coated
  • Top and side panels can be opened
  • Compact dimensions
  • It is designed for indoor work.

Options

  • Stainless oil tank (made of 304 material)
  • Oil level sensor
  • Oil flow sensor
  • Cabin Wheels
Cooling Capacity kW 1,85
Kcal/h 1,6
Compressor Type Hermetic reciprocating
Power Hp 3/4
Refrigeration Gas R134A
Refrigerant Flow Control Capillary
Evaporator Type Co-axial
Cooling Fan Quantity 1
Diameter cm 30
Power Watt 70
Flow Rate m3/h 1.230
Pump Type Dişli
Power Hp 1/2
Flow Rate lt/dk 7.5
Head mss 5
Material Cast iron
Yağ Tankı Volume Liter 20
Material Black pipe
Yağ Bağlantısı Inch 1/2
Electrical Apparatus Siemens veya Schneider Electric
Electrical Supply V / Hz 380/50-60Hz
Working Current A 7,4
Power Cable n x mm2 5 x 1,5
Supply Power kW 1,2
Weight kg
The cooling capacity given in the table is calculated at +7,2C evaporation and +40,0C evaporation temperature.
