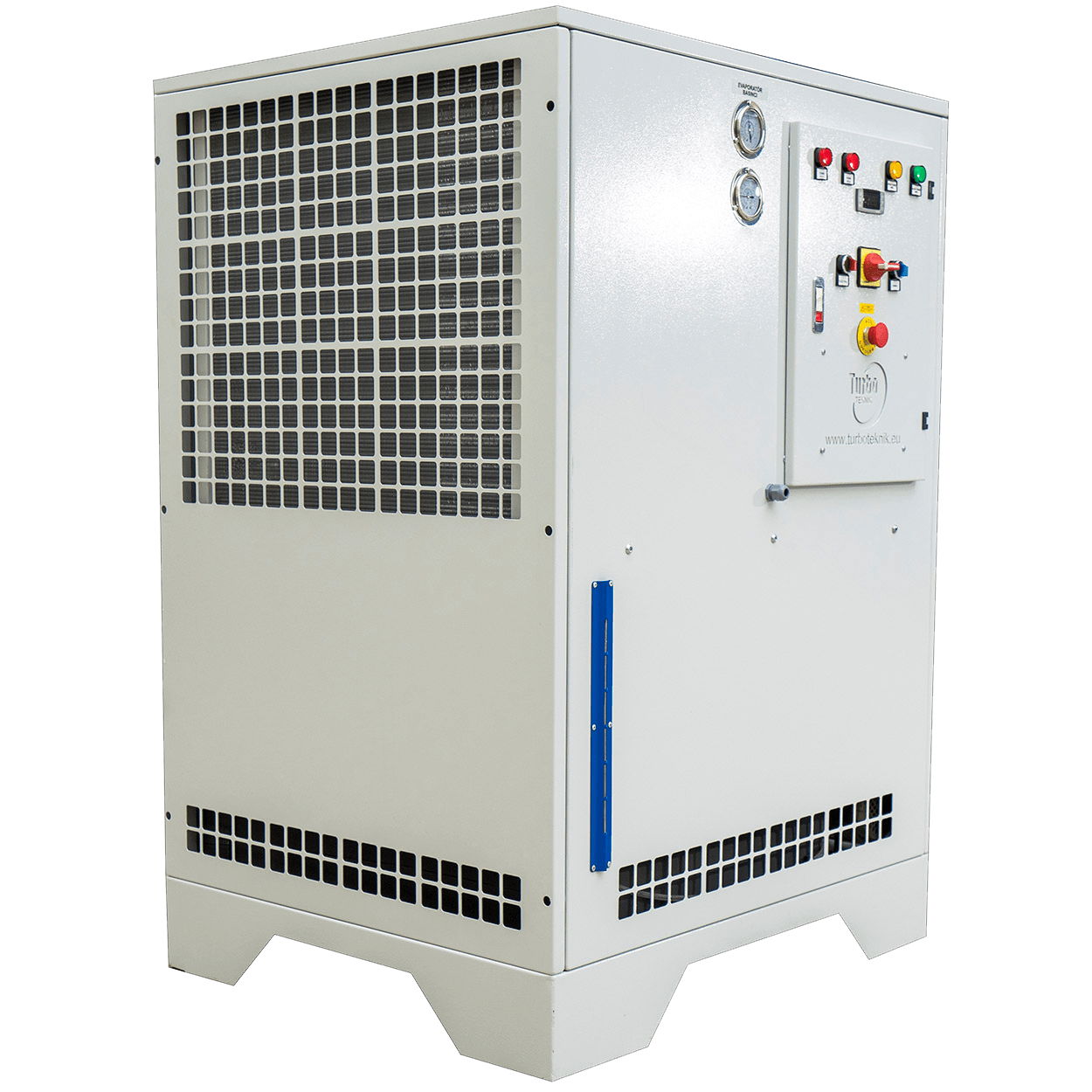

Oil Coolers
Capacity: 10.2 kW
Oil chillers are used to cool spindle&gearbox mechanisms of CNC
lathes and to cool bor oils.
Applications
System Limits
Gauges & Lights
Cabinet
Options

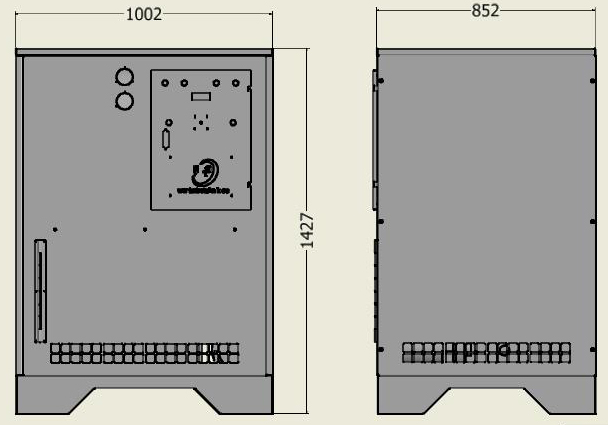

Dimensions
Applications
-
Cooling of transmission oil and spindle oils of CNC
machines
- Cooling of boron oil needed by CNC machines
Oil Circuit
Refrigerant Circuit
- Low pressure protection
- High pressure protection
Electric Circuit
- Pump over current motor protection
- Pump motor phase protection
- Compressor over current motor protection
- Compressor motor phase protection
Oil Circuit
- Dixell digital oil temperature gauge
- Oil pressure manometer
Refrigerant Circuit
- Low pressure warning light
- High pressure warning light
- Low pressure fault lamp
- High pressure fault lamp
Electric Circuit
- Compressor thermal fault lamp
- Pump thermal fault lamp
Cabinet
- Galvanized sheet (1.5mm)
- Electrostatic powder coated
- Top and side panels can be opened
- Compact dimensions
- It is designed for indoor work.
Options
- Plate heat exchanger
- Oil level sensor
- Oil flow sensor
- Cabin Wheels
|
Cooling Capacity
|
kW |
10,3 |
| Kcal/h |
8,8 |
|
Compressor
|
Type |
Hermetic reciprocating |
| Power |
Hp |
3 |
|
Refrigeration Gas
|
R404A |
|
Refrigerant Flow Control
|
Expansion Valve |
|
Evaporator Type
|
Shell and tube |
|
Cooling Fan
|
Quantity |
1 |
| Diameter |
cm |
50 |
| Power |
Watt |
520 |
| Flow Rate |
m3/h |
8.760 |
|
Pump
|
Type |
Centrifugal |
| Power |
Hp |
1 |
| Flow Rate |
m3/h |
2 |
| Head |
mss |
29 |
| Material |
Cast iron |
|
Yağ Tankı
|
Volume |
Liter |
300 |
| Material |
Stainless Steel (SS 304) |
|
Yağ Bağlantısı
|
Inch |
1 |
|
Electrical Apparatus
|
Siemens veya Schneider Electric |
|
Electrical Supply
|
V / Hz |
380 /50-60Hz |
|
Working Current
|
A |
12 |
|
Power Cable
|
n x mm2
|
5 x 2,5 |
|
Supply Power
|
kW |
5,32 |
|
Weight
|
kg |
|
|
The specified Cooling Capacity value is based on + 5C
evaporation temperature and + 40C condensation
temperature.
|
